Design of Rectangular Slotted-Patch Antenna Array-Sensor for Breast-Tumor Detection

Authors

Keywords:

Breast tumor diagnosis, breast phantoms, healthy and malignant breast tissues, monostatic radar-based technique, slotted antenna array, SAR

Abstract

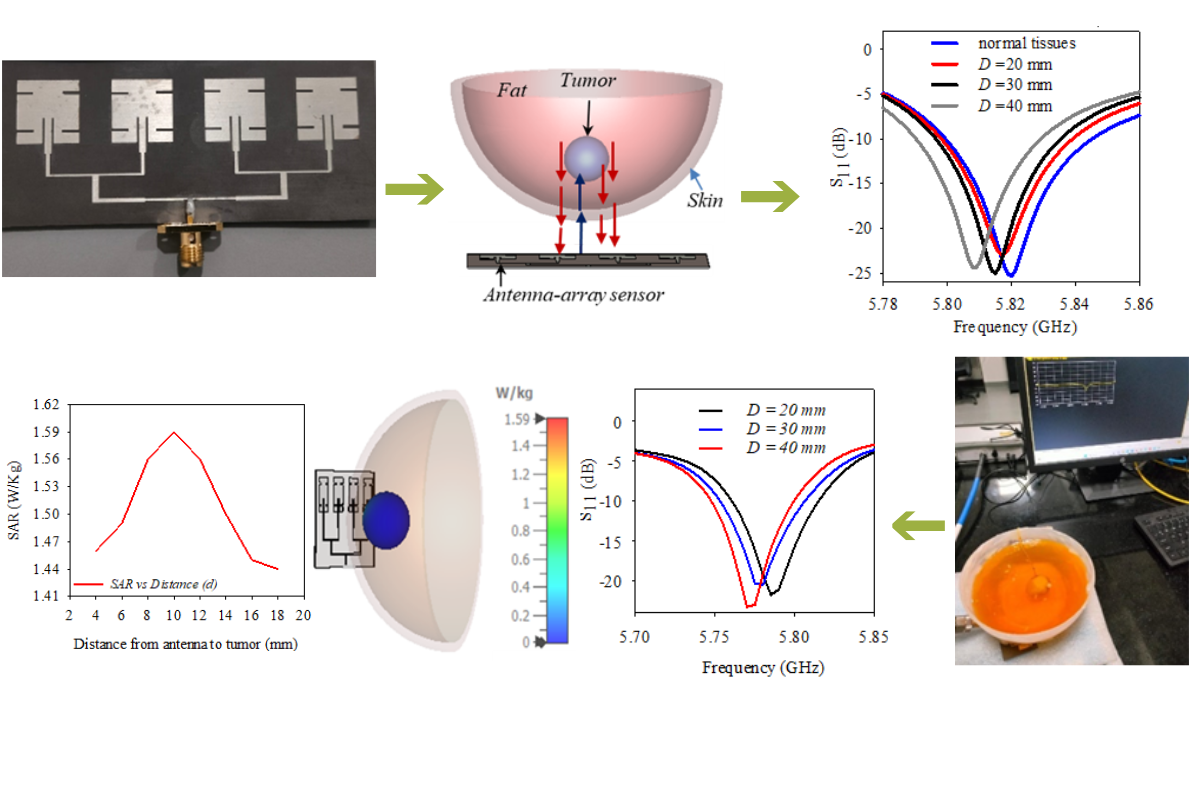

In this work, a slotted rectangular microstrip patch antenna-array-sensor is proposed for breast tumor detection operating in Industrial Scientific and Medical (ISM) frequency band at 5.8 GHz. To increase the sensitivity and better coverage region, a 1×4 antenna-array with overall size 0.96 λg ×2.5 λg has been developed instead of a single element. To excite each antenna element, a 1:4 power divider is employed in corporate feeding with microstrip technology. To acquire the conforming ability on hemispherical surface, the antenna array sensor is realized on RT Duroid 5880 of thickness 0.508 mm. A monostatic radar-based technique using microwave signals is used to detect the contrast between healthy and malignant tissues. Initially, the sensor’s performance has been evaluated over a multi-layered breast equivalent phantom comprising skin and fat layers along with tumor. Specific Absorption Rate (SAR) analysis is conducted to assess the variations in the biological tissues of the breast equivalent phantom, distinguishing between healthy and malignant tissues. Also, experimental results reveal that the 1×4 array sensor provides improved sensitivity, gain, and directional energy delivery, enabling better detection of tumors at varying sizes and depths.

Downloads

Download data is not yet available.

Author Biographies

Divya Chaturvedi, Indian Institute of Information Technology, Pune, Maharashtra, 411041, India.

Divya Chaturvedi (Senior Member, IEEE) was born in Kanpur, India. She received the B.Tech. degree in electronics and communication engineering from Uttar Pradesh Technical University, Lucknow, India, in 2011, and the M.Tech. degree in electronics engineering from Pondicherry Central University, Puducherry, India, in 2015, and the Ph.D. degree in substrate-integrated waveguide-based cavity-backed antenna from the National Institute of Technology, Tiruchirappalli, India, in 2019. Currently, she is working as an Assistant Professor at the Department of Electronics and Communication Engineering, IIIT Pune, Pune, Maharashtra, India.

V L Bhavani Maddirala, SRM University-AP, Amaravati, Andhra Pradesh, 522240, India.

M V L Bhavani (Student Member, IEEE) was born in Vijayawada, India. She received the B.Tech. degree in electronics and communication engineering and the M.Tech. degree in electronics engineering from Jawaharlal Nehru Technological University, Kakinada, India, in 2010 and 2012, respectively. She is currently pursuing the Ph.D. degree with the Department of Electronics and Communication Engineering, SRM University-AP, Amaravati, India.

Arvind Kumar, Visvesvaraya National Institute of Technology, Nagpur, Maharashtra, 440010, India

Arvind Kumar (SM IEEE) was born in Jodhpur, India. He currently holds the position of Assistant Professor in the Department of ECE at VNIT Nagpur, India. Prior to this, he served as an Assistant Professor at VIT Vellore. He earned his Ph.D. in Microwave and RF in the Department of ECE at NIT Trichy, India, in 2019. In 2025 he was awarded young faculty research fellowship award by Ministry of Electronics & Information Technology, GoI. He was awarded the prestigious 'Scientific High-Level Visiting Fellowship' by the Government of France, enabling him to serve as a short-term visiting researcher at the University of Rennes-IETR.

References

M. Arnold et al., “Current and future burden of breast cancer: Global statistics for 2020 and 2040,” Breast, vol. 66, pp. 15–23, Dec. 2022, doi: 10.1016/j.breast.2022.08.010.

M. J. Yaffe and J. G. Mainprize, “Risk of radiation-induced breast cancer from mammographic screening,” Radiology, vol. 258, no. 1, pp. 98–105, Jan. 2011, doi: 10.1148/radiol.10100655.

A. M. Chiarelli et al., “Performance measures of magnetic resonance imaging plus mammography in the high-risk Ontario breast screening program,” J. Nat. Cancer Inst., vol. 112, no. 2, pp. 136–144, Feb. 2020, doi: 10.1093/jnci/djz079.

B. M. Moloney, D. O’Loughlin, S. A. Elwahab, and M. J. Kerin, “Breast cancer detection—A synopsis of conventional modalities and the potential role of microwave imaging,” Diagnostics, vol. 10, no. 2, p. 103, Feb. 2020, doi: 10.3390/diagnostics10020103.

E. C. Fear, P. M. Meaney, and M. A. Stuchly, “Microwaves for breast cancer detection?” IEEE Potentials, vol. 22, no. 1, pp. 12–18, 2003, doi: 10.1109/MP.2003.1180933.

N. AlSawaftah, S. El-Abed, S. Dhou, and A. Zakaria, “Microwave imaging for early breast cancer detection: Current state, challenges, and future directions,” J. Imag., vol. 8, no. 5, p. 123, Apr. 2022, doi: 10.3390/jimaging8050123.

M. A. Aldhaeebi and T. S. Almoneef, “Dipole array sensor for microwave breast cancer detection,” IEEE Access, vol. 11, pp. 91375–91384, 2023, doi: 10.1109/ACCESS.2023.3304694.

D. M. Elsheakh, S. A. Alsherif, and A. R. Eldamak, “Textile monopole sensors for breast cancer detection,” Telecommun. Syst., vol. 82, no. 3, pp. 363–379, Mar. 2023, doi: 10.1007/s11235-023-00990-x.

M. V. L. Bhavani, D. Chaturvedi, T. Lanka, and A. Kumar, “Development of a QMSIW Antenna Sensor for Tumor Detection Utilizing a Hemispherical Multilayered Dielectric Breast-Shaped Phantom,” IEEE Sens. J., vol. 24, no. 20, pp. 32080–32089, 2024, doi: 10.1109/JSEN.2024.3450990.

D. Brizi, M. Conte, and A. Monorchio, “A Performance-Enhanced Antenna for Microwave Biomedical Applications by Using Metasurfaces,” IEEE Trans. Antennas Propag., vol. 71, no. 4, pp. 3314–3323, 2023, doi: 10.1109/TAP.2023.3242414.

H. Bahramiabarghouei, E. Porter, A. Santorelli, B. Gosselin, M. Popovic, and L. A. Rusch, “Flexible 16 antenna array for microwave breast cancer detection,” IEEE Trans. Biomed. Eng., vol. 62, no. 10, pp. 2516–2525, Oct. 2015, doi: 10.1109/TBME.2015.2434956.

H. V. Kumar and T. S. Nagaveni, “Design of Microstrip Patch Antenna To Detect Breast Cancer,” Online) Ictact J. Microelectron., vol. 1680, no. April, p. 1, 2020, doi: 10.21917/ijme.2020.0154.

L. A. El Vadel, D. B. O. Konditi, and F. Moukanda Mbango, “A Miniaturized Antenna for Breast Cancer Detection at the 5.72-5.82 GHz ISM Band Based on the DGS Technique,” Prog. Electromagn. Res. B, vol. 98, no. February, pp. 87–105, 2023, doi: 10.2528/pierb23011004..

M. Elsaadi, H. Muhmed, M. A. Alraheem, H. Miftah, and O. Salah, “Square Patch Antenna for Breast Cancer Diagnosis at 2.45 GHz,” Circuits Syst., vol. 10, no. 04, pp. 45–53, 2019, doi: 10.4236/cs.2019.104004.

M. S. Ahmed, Z. Ibrahim, M. M. Islam, M. Shahadat Islam Sumon, and A. K. M. Ehtesanul Islam, “Design and Analysis of Multi Slotted Micro-Strip Patch Antenna Operating in ISM Band for Breast Cancer Detection,” 2023 26th Int. Conf. Comput. Inf. Technol. ICCIT 2023, no. December, pp. 1–6, 2023, doi: 10.1109/ICCIT60459.2023.10441316.

S. Sharma and D. Chaturvedi, “Slotted Rectangular Microstrip Patch Antenna for Breast Cancer Detection,” 2023 Photonics Electromagn. Res. Symp. PIERS 2023 - Proc., pp. 2008–2013, 2023, doi: 10.1109/PIERS59004.2023.10221483.

Federal Communications Commission (FCC), “Code of Federal Regulations Title 47, Part 18 – Industrial, Scientific, and Medical Equipment,” U.S. Government Publishing Office, Washington, DC, USA. [Online]. Available: https://www.ecfr.gov/current/title-47/chapter-I/subchapter-A/part-18.

D. Gibbins, et al., “A comparison of a wide-slot and a stacked patch antenna for the purpose of breast cancer detection,” IEEE Trans. Ant. Propag., Vol. 58, pp. 665–674, 2010. doi: 10.1109/TAP.2009.2039296.

M. Lazebnik et al., “A large-scale study of the ultrawideband microwave dielectric properties of normal, benign and malignant breast tissues obtained from cancer surgeries,” Phys. Med. Biol., vol. 52, no. 20, pp. 6093–6115, Oct. 2007, doi: 10.1088/0031-9155/52/20/002.

Cheng Y, Fu M. Dielectric properties for non-invasive detection of normal, benign, and malignant breast tissues using microwave theories. Thorac Cancer. 2018 Apr;9(4):459-465. doi: 10.1111/1759-7714.12605. Epub 2018 Feb 21. PMID: 29465782; PMCID: PMC5879051.

S. Gabriel, R. W. Lau, and C. Gabriel, “The dielectric properties of biological tissues: II. measurements in the frequency range 10 Hz to 20 GHz,” Phys. Med. Biol., vol. 41, no. 11, pp. 2251–2269, Nov. 1996. DOI 10.1088/0031-9155/41/11/002.

N. Uncu and E. A. Aydin, “The effects of dielectric values, breast and

tumor size on the detection of breast tumor,” Tehniˇcki Glasnik, vol. 13,

no. 3, pp. 197–203, Sep. 2019, doi: 10.31803/tg-20190226095826.

M. N. Sadiku, Principles of Electromagnetics, 1st ed. London, U.K.:

Oxford Univ. Press, 2015.

C. A. Balanis, Advanced Engineering Electromagnetics. Hoboken, NJ,

USA: Wiley, 2012.

S. Subramanian, B. Sundarambal, and D. Nirmal, “Investigation on simulation-based specific absorption rate in ultra-wideband antenna for breast cancer detection,” IEEE Sensors J., vol. 18, no. 24, pp. 10002–10009, Dec. 2018, doi: 10.1109/JSEN.2018.2875621.

M. Bah, J. Hong, and D. Jamro, “Study of breast tissues dielectric properties in UWB range for microwave breast cancer imaging,” in Proc. Int. Conf. Comput. Inf. Syst. Ind. Appl., vol. 18, 2015, pp. 473–475, doi: 10.2991/cisia-15.2015.129.

K. E. Michaelsen, V. Krishnaswamy, A. Shenoy, E. Jor- dan, B. Pogue, and K. D. Paulsen, “Anthropomorphic breast phantoms with physiological water, lipid, and hemoglobin content for near-infrared spectral tomogra- phy,” J. biomed. optics, vol. 19, no. 2, p. 026012, 2014. DOI: 10.1117/1.JBO.19.2.026012
