Modeling and Analysis of Distribution Power System at UFLA Using OpenDSS

Authors

Keywords:

Deterministic Power Flow, Distribution System Planning, Capacitor Bank Sizing

Abstract

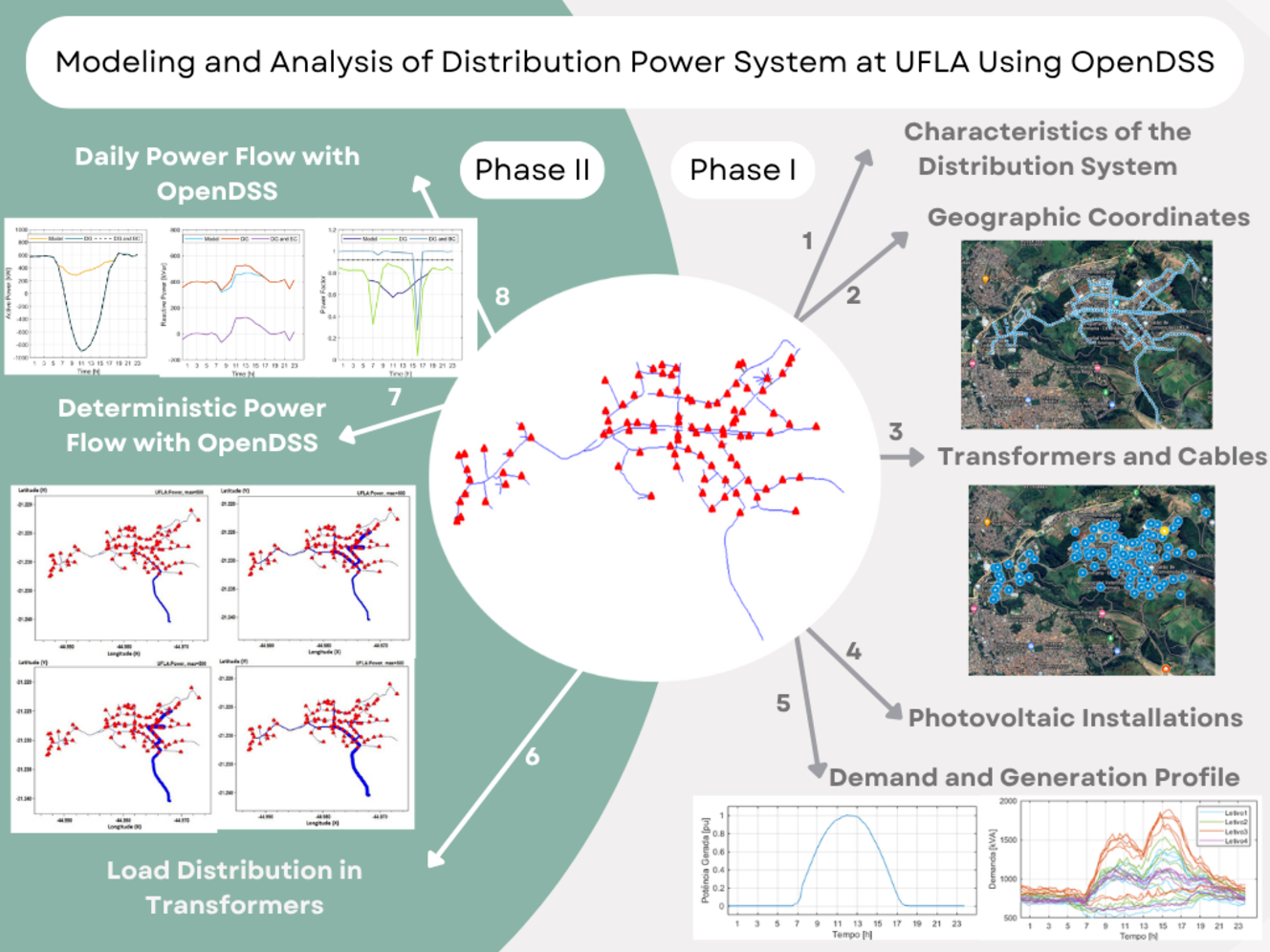

The increasing integration of Distributed Energy Resources (DERs) in power distribution networks demands accurate system modeling and reliable power flow analysis. This paper presents a structured methodology for modeling a real Electrical Distribution System (EDS) using OpenDSS, applied to the Federal University of Lavras (UFLA), Brazil. Due to the lack of georeferenced data, the method combines satellite-based geolocation with load characterization from real measurements and statistical distributions. The model supports deterministic and time-series power flow simulations under three conditions: without DERs, with a 1.2 MWp photovoltaic plant, and with additional power factor correction. To achieve this, an incremental algorithm is proposed to determine the optimal size of a fixed capacitor bank at the feeder, improving the power factor without violating constraints. Results showed that DER integration reverses power flow, increases losses, and reduces the power factor, which also becomes variable and highly dependent on photovoltaic generation, but is improved by the proposed algorithm. This methodology enables effective, simplified modeling and analysis of real-world EDSs.
